Database schema builder for dashboard template

This package contains utilities to build a specific generic database scheme from a table.

Objectives

This package is built to create :

  • a generic schema to store a table as a database :

    • the metadata table references general information (label, type etc ...) about each dataframe column ;
    • the dimension tables associate each modality of a categorical variable to an id used in the fact table ;
    • the fact table reflects the information in the original table ;

  • export this schema a relational DuckDB database.

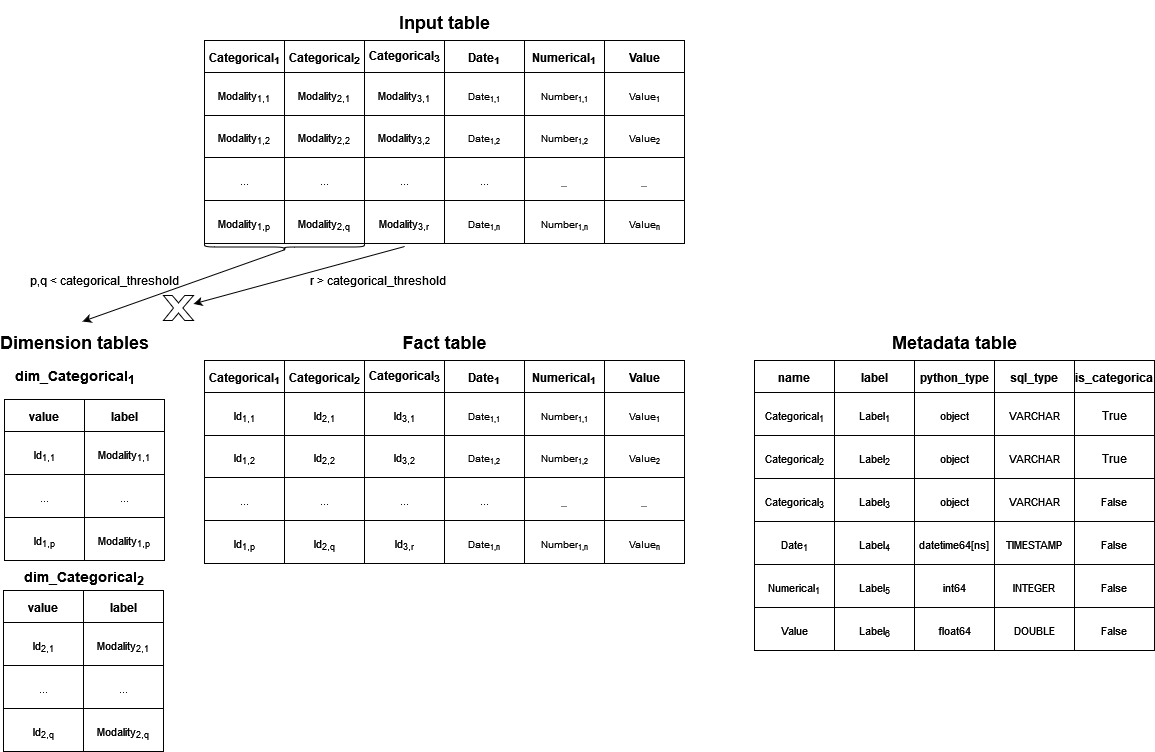

Scheme for table storage

Installation

Package and dependencies

git clone https://github.com/qbolliet/dashboard-template-database.git
poetry install

The package is then usable as any other python package.

Parametrisation

File in the config.yaml file :

INPUT_DATA : '../data/df_origin.csv'
OUTPUT_DATA : '../outputs/database.db'
THRESHOLD : 200

Documentation

To visualize the documentation :

poetry install --with docs


mkdocs build --port 5000

Usage

Here's an example of how to use the functions in the package:

import pandas as pd
from dashboard_template_database.builders.schema import SchemaBuilder
from dashboard_template_database.builders.tables import DuckdbTablesBuilder
from dashboard_template_database.loaders.local.loader import Loader

# Load a sample DataFrame
loader = Loader()
sample_data = pd.DataFrame({
    'Name': ['Alice', 'Bob', 'Charlie'],
    'Age': [25, 30, 35],
    'City': ['Paris', 'Berlin', 'Madrid']
})

# Initialize the SchemaBuilder
schema_builder = SchemaBuilder(df=sample_data, categorical_threshold=3)

# Build the schema
metadata, dimension_tables, fact_table = schema_builder.build()

# Initialize the DuckDB tables builder
duckdb_builder = DuckdbTablesBuilder(df=sample_data)

# Create the schema in DuckDB
duckdb_builder.build_duckdb_schema()

# Display the schema in DuckDB
duckdb_builder.display_schema()

License

The package is licensed under the MIT License.
